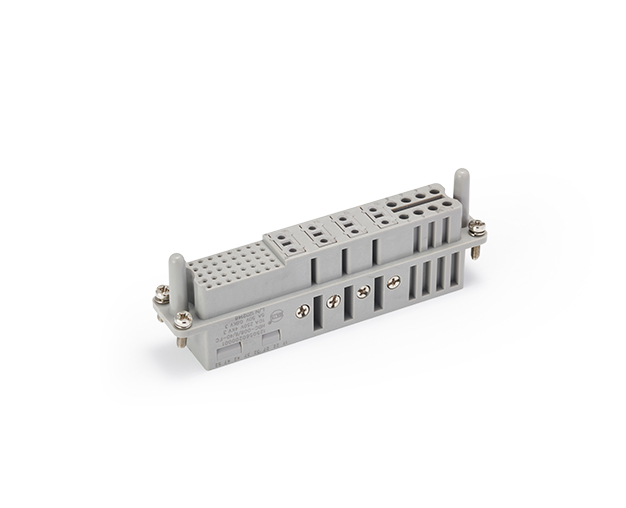

HDC-008/8/40-FC

HDC-008/8/40-FC

Model： HDC-008/8/40-FC

Order No： 125 056 020 0001

Do you need to order crimp contacts separately： Yes

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Connection type

State grid anti-open connector
Wire gauge (mm²)

0.09-0.52mm2（28-20AWG）
Connection type

Crimp connection
Wire gauge (mm²)

0.14-2.5mm2（26-14AWG）
Connection type

Crimp connection
Connection type

Screw connection
Material

Copper alloy
Number of connector contacts

8+8 (anti-open) +40
Rated current

10A
Rated voltage

250V
Rated pulse voltage

4KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Flame retardant rating as per UL94

V0
Mating cycles

≥500
Working temperature

-40℃...+125℃
Material

Polycarbonate
Surface treatment

Silver-plated

Gold-plated
Contact resistance

≤3mΩ
Wire gauge (mm²)

0.75-2.5mm2（18-14AWG）
Connection type

Crimp/screw

Authentication

CQC

Downloads

2D Drawings

3D Models

3D_1250560200001_HDC-008_8_40-FC_V1.0.stp
