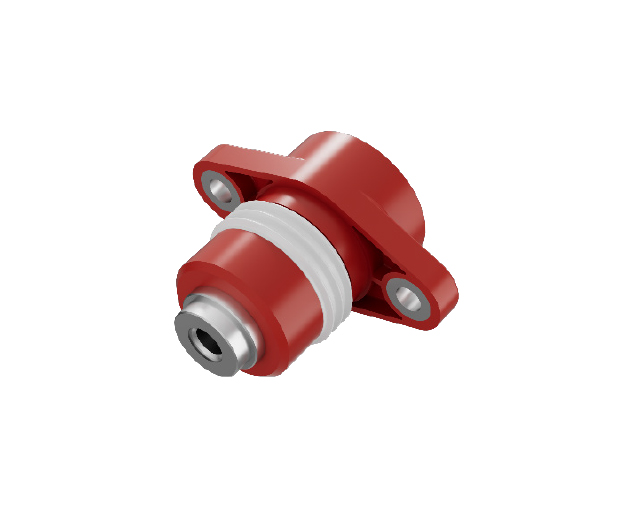

WNIPT-2-1-B

Model： WNIPT-2-1-B

Order No： 3010102

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Technical Data

environmental_requirements

RoHS 2.0
flammability_rating_according_to_ul94

V0
pollution_degree

Ⅲ
degree_of_protection

IP68
relative_humidity

3%～95%
operating_temperature_range

-40℃～+125℃
mating_cycles

≥15
surface

Tin Plated
material

PA66

Silicone Rubber

Copper Alloy
series

IPT-2 200A
insulation_resistance

≥200MΩ
withstand_voltage

3000V(50Hz AC )
rated_voltage

1000V
rated_current

200A
color

Red
key_position_or_cover

Yes
connection_method

Screw
locking_method

Screw Fixing
contact_connection_type

M8 Internal Threaded Hole
