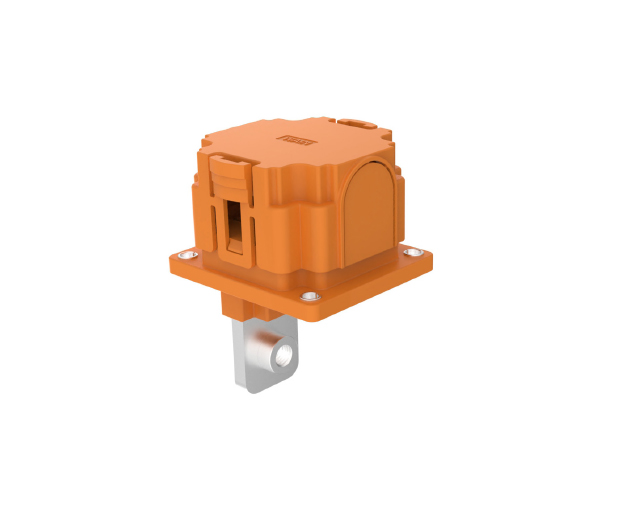

WNHVIPT-3-M1-A-F120-OG

WNHVIPT-3-M1-A-F120-OG

Model： WNHVIPT-3-M1-A-F120-OG

Order No： 1403010106000

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Technical Data

environmental_requirements

RoHS 2.0
flammability_rating_according_to_ul94

V0
pollution_degree

Ⅱ
degree_of_protection

IP20
relative_humidity

3%～95%
operating_temperature_range

-40℃～+125℃
mating_cycles

≥50
surface

Nickel Plated
material

PBT

Silicone Rubber

Copper Alloy
series

IPT-3 400A
wire_specification

120mm²
insulation_resistance

≥200MΩ
withstand_voltage

4200V DC
rated_voltage

1500V DC
rated_current

400A
color

Orange
connection_method

Screw
locking_method

Screw Fixing
contact_connection_type

Copper Pin with M8 Press-Fit Nut
