Flexible modular connectors
Function modules (power, signal, data, gas circuit, light path, etc.)
Flexible combinations that meet the requirements of various applications
Save more space than single connectors
50V-5000V/5A-200A
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Data transmission module

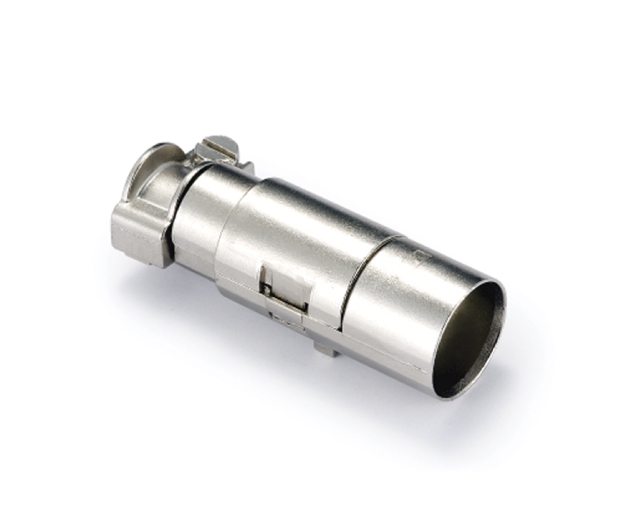

Module size:,Connection type:Crimp connection,Male/female:Male,Specifications:,Number of connector contacts:1+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

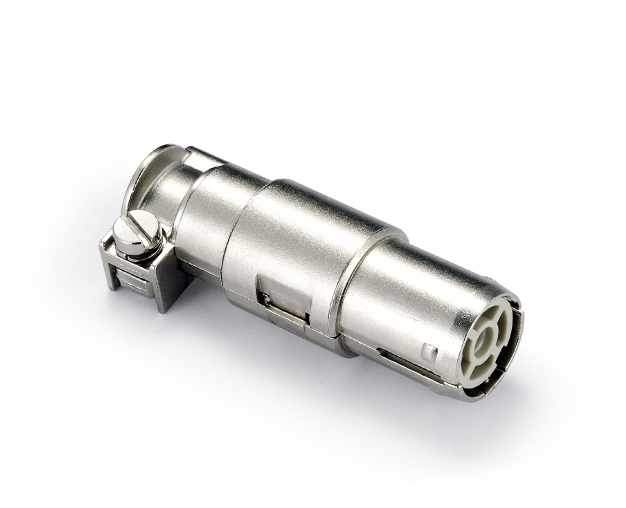

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Specifications:,Number of connector contacts:1+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

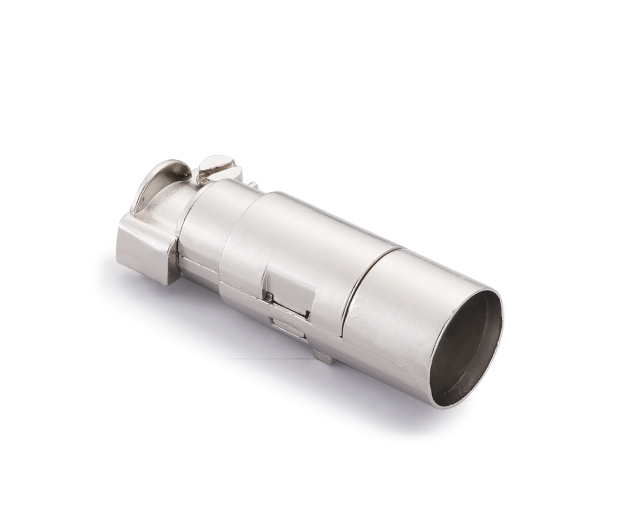

Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG,Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Specifications:,Number of connector contacts:4+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:

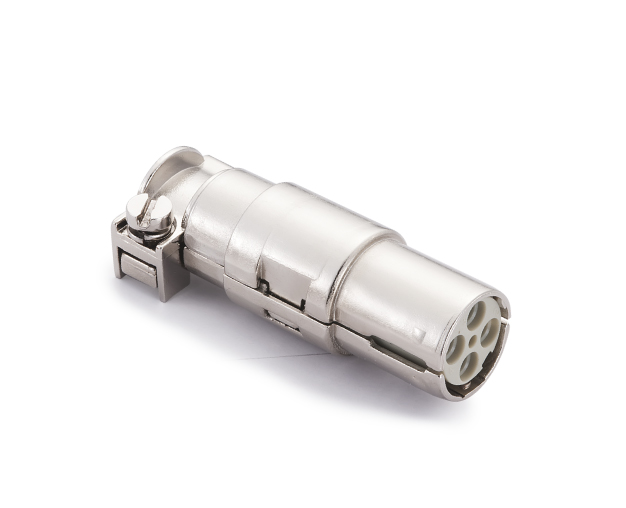

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Specifications:,Number of connector contacts:4+shield,Rated current:10A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

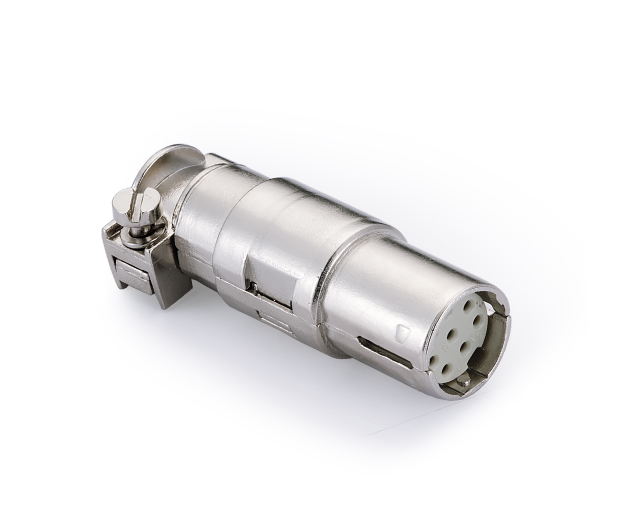

Module size:Dual module,Connection type:Crimp connection,Male/female:Female,Number of connector contacts:8+shield,Rated current:5A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):28-20 AWG

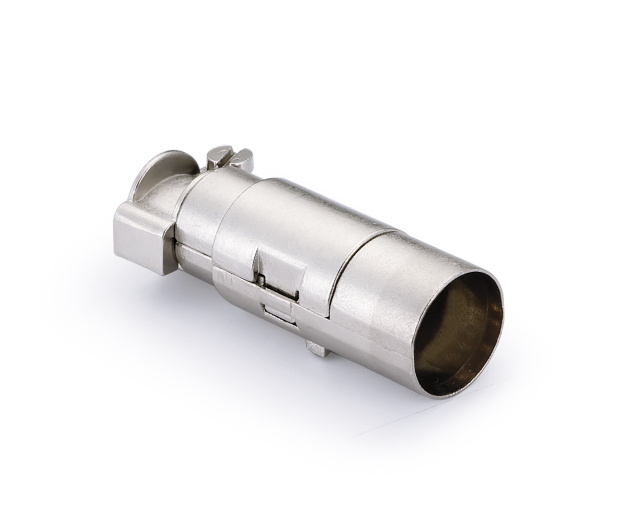

Module size:Dual module,Connection type:Crimp connection,Male/female:Male,Specifications:,Number of connector contacts:8+shield,Rated current:5A,Rated voltage:50V,Insulation resistance:≥10¹ºΩ,Bayonet range:,Contact material:Copper alloy,Wire gauge (mm²):0.09-0.52mm²,Wire gauge (AWG):28-20 AWG
Product column： Rectangular Connectors >>Inserts >>HM modular insert series >>Power module

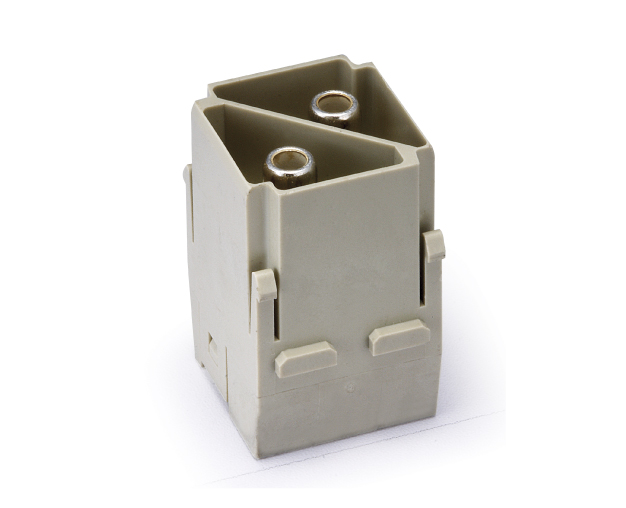

Contact material:Copper alloy,Wire gauge (mm²):10-25mm²,Wire gauge (AWG):NA,Tightening/testing torque:10mm²→6Nm|16mm²→6Nm|25mm²→7Nm,Module size:Dual module,Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:2,Rated current:100A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate

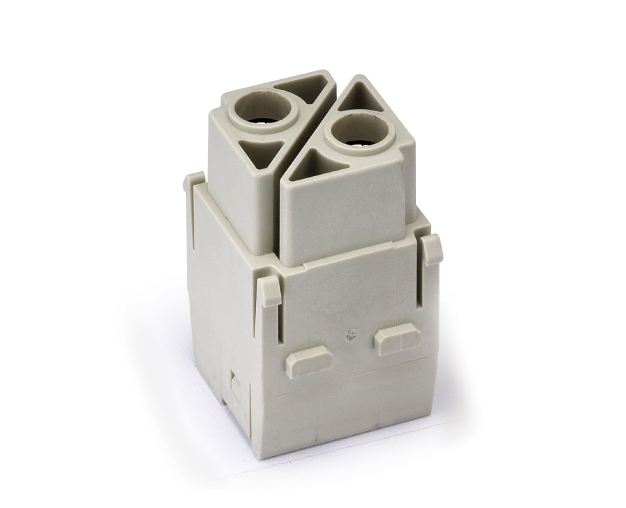

Module size:Dual module,Connection type:Axial bolt connection,Male/female:Female,Number of connector contacts:2,Rated current:100A,Rated voltage:1000V,Insulation resistance:≥10¹ºΩ,Inserts material:Polycarbonate,Contact material:Copper alloy,Wire gauge (mm²):10-25mm²,Wire gauge (AWG):NA,Tightening/testing torque:10mm²→6Nm|16mm²→6Nm|25mm²→7Nm
