Combined heavy-current inserts with multiple current options
Each insert transmits both power and signal
160V-830V / 5A-100A
Connection options include screw, axial screw, and crimp
Product column： Rectangular Connectors >>Inserts >>HK insert series

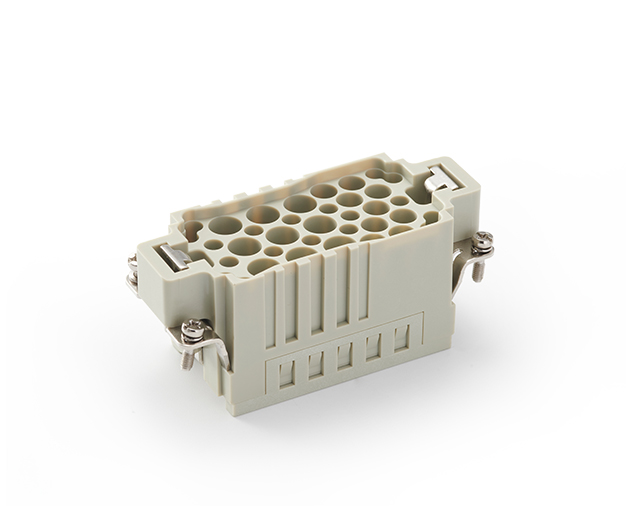

Connection type:Crimp connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:9+9+18,Rated current:40A|16A|10A,Rated voltage:830V|830V|250V,Wire gauge (mm²):1.5-6mm²|0.14-4mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-12 AWG|26-14 AWG
Connection type:Crimp connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:9+9+18,Rated current:40A|16A|10A,Rated voltage:830V|830V|250V,Wire gauge (mm²):1.5-6mm²|0.14-4mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-12 AWG|26-14 AWG

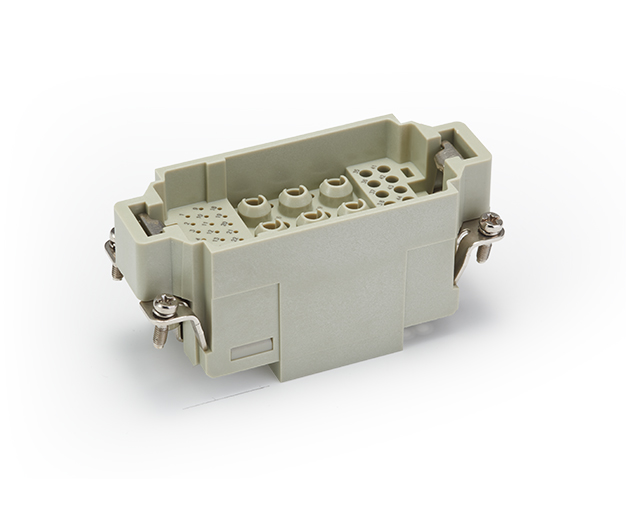

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:9+12+25,Rated current:10A|40A|5A,Rated voltage:250V|630V|50V,Wire gauge (mm²):0.14-2.5mm²|1.5-6mm²|0.09-0.52mm²,Wire gauge (AWG):26-14 AWG|16-10 AWG|28-20 AWG

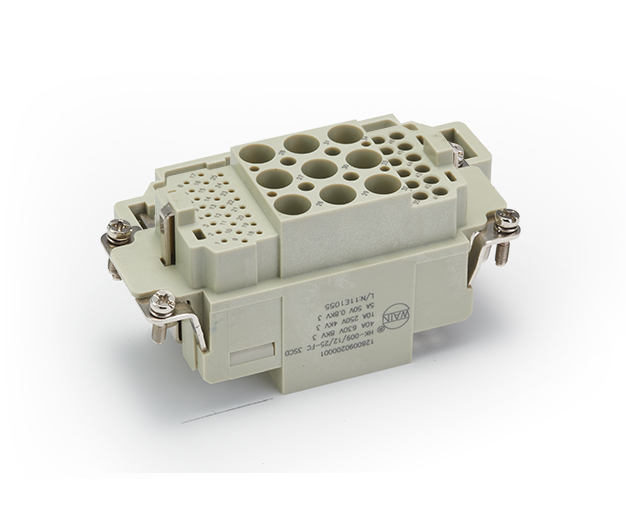

Connection type:Crimp connection,Male/female:Female,Number of connector contacts:9+12+25,Rated current:10A|40A|5A,Rated voltage:250V|630V|50V,Wire gauge (mm²):0.14-2.5mm²|1.5-6mm²|0.09-0.52mm²,Wire gauge (AWG):26-14 AWG|16-10 AWG|28-20 AWG
Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:4+4,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):6-16mm²|0.14-2.5mm²,Wire gauge (AWG):10-6 AWG|26-14 AWG
Male/female:Female,Connection type:Axial bolt connection,Number of connector contacts:4+4,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):6-16mm²|0.14-2.5mm²,Wire gauge (AWG):10-6 AWG|26-14 AWG
Male/female:Male,Connection type:Axial bolt connection,Number of connector contacts:4+4,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):14-22mm²|0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
Male/female:Female,Connection type:Axial bolt connection,Number of connector contacts:4+4,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):14-22mm²|0.14-2.5mm²,Wire gauge (AWG):26-14 AWG
