Combined heavy-current inserts with multiple current options
Each insert transmits both power and signal
160V-830V / 5A-100A
Connection options include screw, axial screw, and crimp
Product column： Rectangular Connectors >>Inserts >>HK insert series

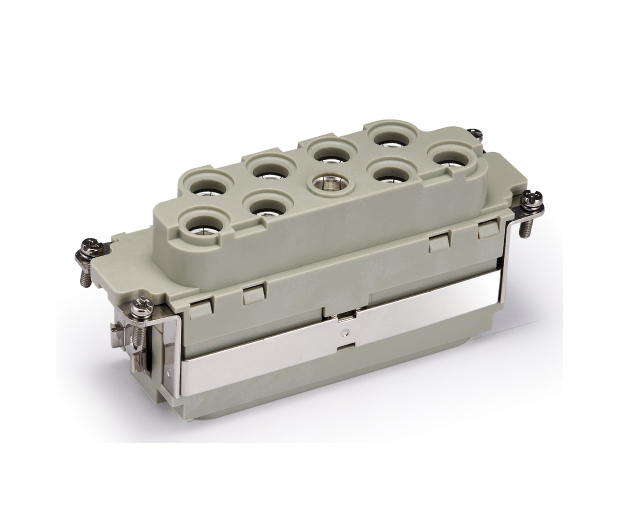

Male/female:Male,Connection type:Axial bolt connection | screw connection,Number of connector contacts:8,Rated current:100A,Rated voltage:690V,Wire gauge (mm²):10-25mm²,Wire gauge (AWG):7-3 AWG
Male/female:Female,Connection type:Axial bolt connection | screw connection,Number of connector contacts:8,Rated current:100A,Rated voltage:690V,Wire gauge (mm²):10-25mm²,Wire gauge (AWG):7-3 AWG

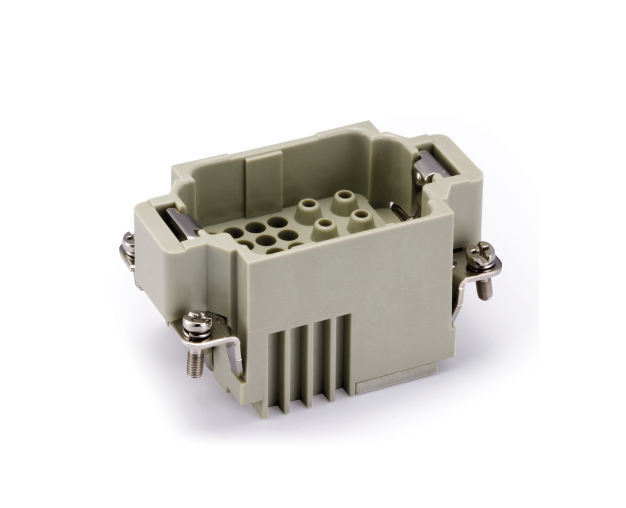

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:8+24,Rated current:16A|10A,Rated voltage:400V|250V,Wire gauge (mm²):0.5-4mm²|0.14-2.5mm²,Wire gauge (AWG):20-12 AWG|25-14 AWG

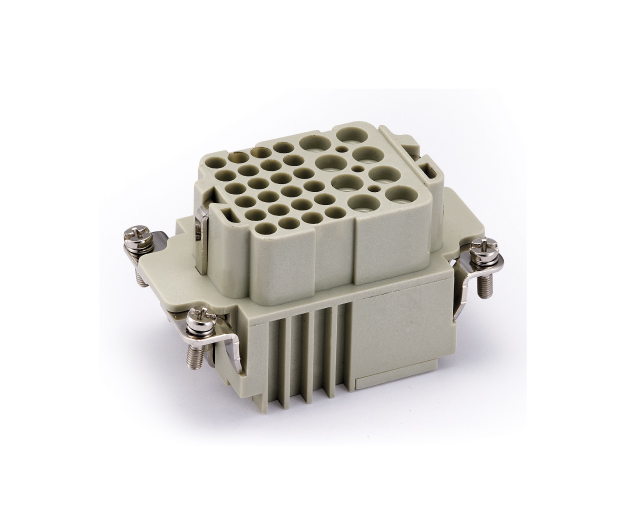

Rated current:16A|10A,Rated voltage:400V|250V,Wire gauge (mm²):0.5-4mm²|0.14-2.5mm²,Wire gauge (AWG):20-12 AWG|25-14 AWG,Male/female:Female,Connection type:Crimp connection,Number of connector contacts:8+24

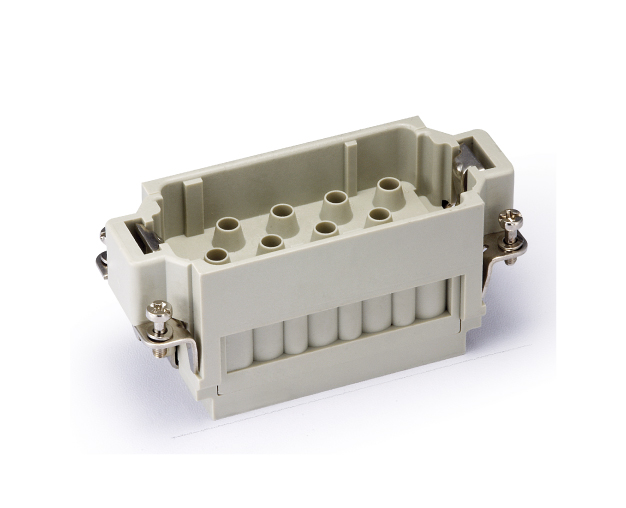

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:12+2,Rated current:40A|10A,Rated voltage:690V|250V,Wire gauge (mm²):1.5-6mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-14 AWG

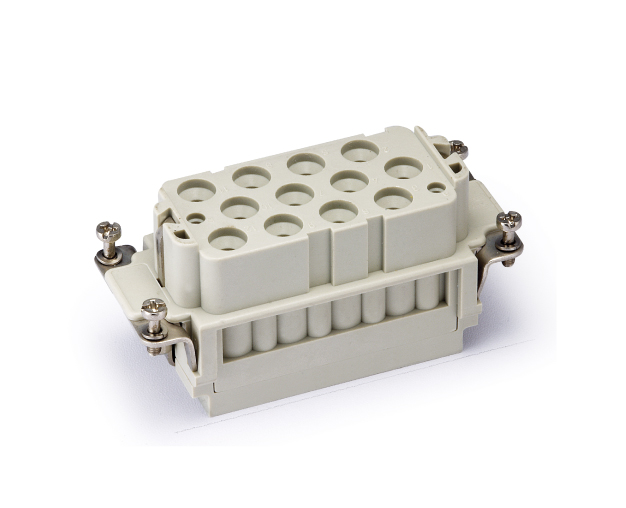

Male/female:Female,Connection type:Crimp connection,Number of connector contacts:12+2,Rated current:40A|10A,Rated voltage:690V|250V,Wire gauge (mm²):1.5-6mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-14 AWG

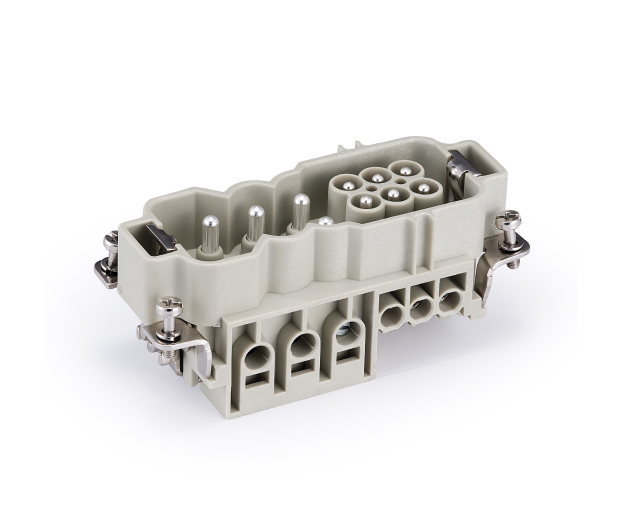

Wire gauge (mm²):4-10mm²|1-2.5mm²,Wire gauge (AWG):12-8 AWG|18-14 AWG,Male/female:Male,Connection type:Screw connection,Number of connector contacts:6+6,Rated current:40A|16A,Rated voltage:690V|400V

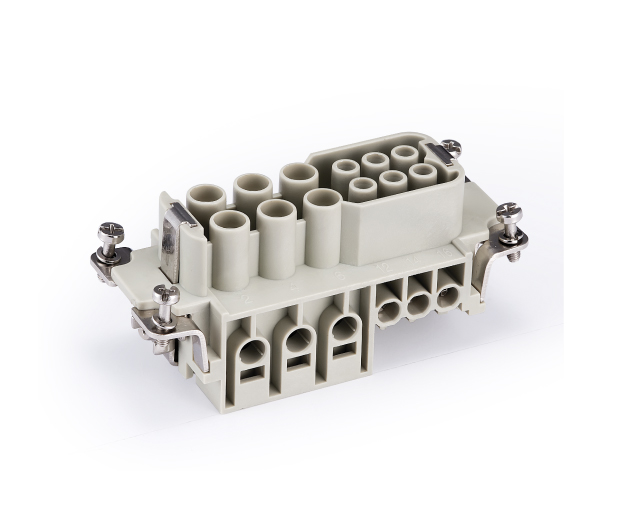

Male/female:Female,Connection type:Screw connection,Number of connector contacts:6+6,Rated current:40A|16A,Rated voltage:690V|400V,Wire gauge (mm²):4-10mm²|1-2.5mm²,Wire gauge (AWG):12-8 AWG|18-14 AWG
