OEM/ODM HK insert series, China Inserts Factory

HK insert series

Combined heavy-current inserts with multiple current options

Each insert transmits both power and signal

160V-830V / 5A-100A

Connection options include screw, axial screw, and crimp

Inserts

40 search results

Total:40

Total:5 page:4/5

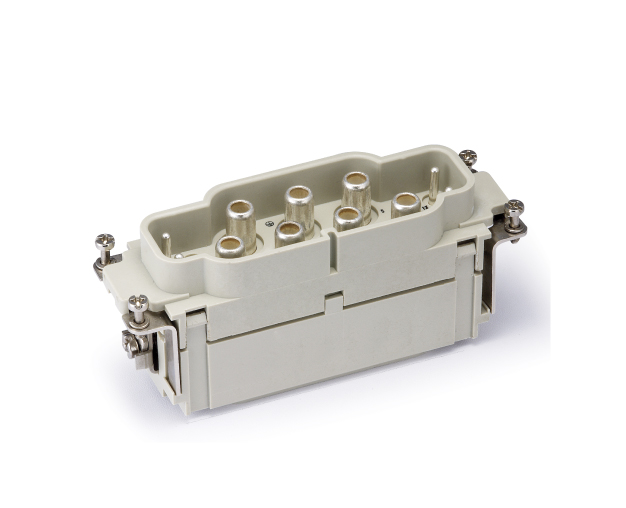

HK-006/6-M

Insert

128 012 011 0101

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Male,Connection type:Axial bolt connection | screw connection,Number of connector contacts:6+6,Rated current:100A|16A,Rated voltage:690V|400V,Wire gauge (mm²):16-35mm²|0.2-2.5mm²,Wire gauge (AWG):5-2 AWG|24-14 AWG

Suitable for the shell of the insert housing

+more

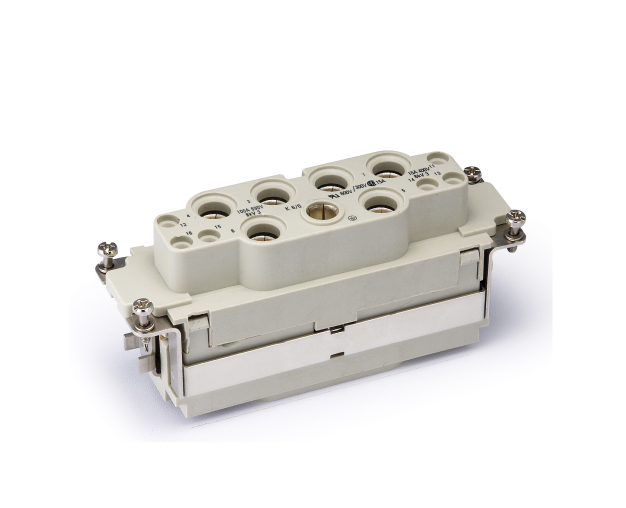

HK-006/6-F

Insert

128 012 021 0101

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Female,Connection type:Axial bolt connection | screw connection,Number of connector contacts:6+6,Rated current:100A|16A,Rated voltage:690V|400V,Wire gauge (mm²):16-35mm²|0.2-2.5mm²,Wire gauge (AWG):5-2 AWG|24-14 AWG

Suitable for the shell of the insert housing

+more
HK-006.1/12-M(2.5-8mm2)

Insert

128 018 011 0001

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Male,Connection type:Axial bolt connection | screw connection,Number of connector contacts:6+12,Rated current:40A|10A,Rated voltage:690V|230V|400V,Wire gauge (mm²):2.5-8mm²|0.2-2.5mm²,Wire gauge (AWG):26-14 AWG

Suitable for the shell of the insert housing

+more
HK-006.1/12-F(2.5-8mm2)

Insert

128 018 021 0001

Product column： Rectangular Connectors >>Inserts >>HK insert series

Connection type:Axial bolt connection | screw connection,Male/female:Female,Number of connector contacts:6+12,Rated current:40A|10A,Rated voltage:690V|230V|400V,Wire gauge (mm²):2.5-8mm²|0.2-2.5mm²,Wire gauge (AWG):24-14 AWG

Suitable for the shell of the insert housing

+more

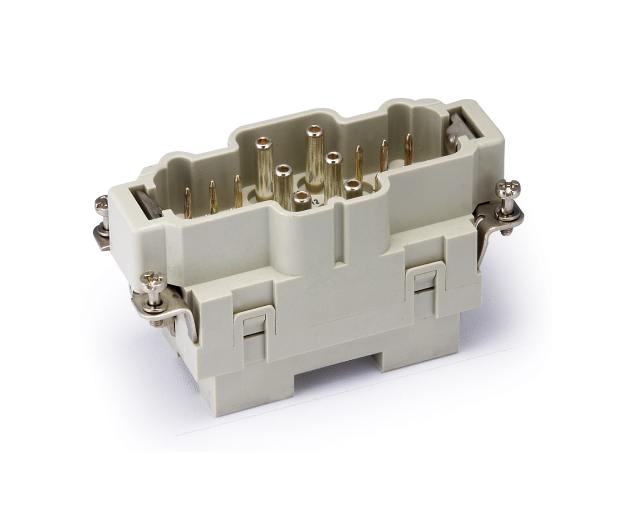

HK-006.2/12-M(6-10mm2)

Insert

128 018 011 0002

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Male,Connection type:Axial bolt connection | screw connection,Number of connector contacts:6+12,Rated current:40A|10A,Rated voltage:690V|230V|400V,Wire gauge (mm²):6-10mm²|0.2-2.5mm²,Wire gauge (AWG):10-8 AWG|24-14 AWG

Suitable for the shell of the insert housing

+more

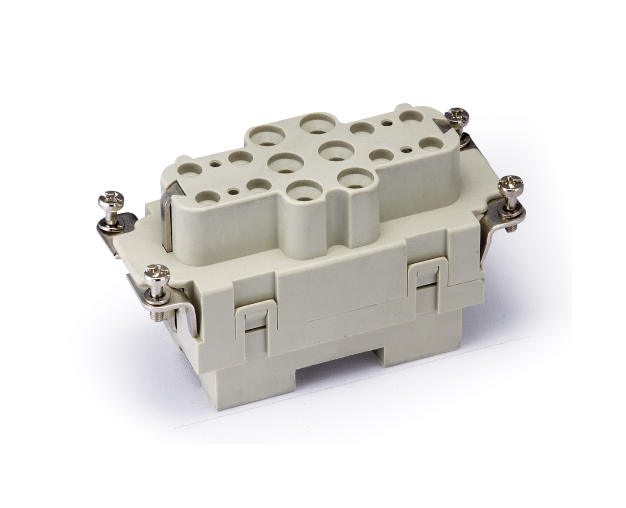

HK-006.2/12-F(6-10mm2)

Insert

128 018 021 0002

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Female,Connection type:Axial bolt connection | screw connection,Number of connector contacts:6+12,Rated current:40A|10A,Rated voltage:690V|230V|400V,Wire gauge (mm²):6-10mm²|0.2-2.5mm²,Wire gauge (AWG):10-8 AWG|24-14 AWG

Suitable for the shell of the insert housing

+more

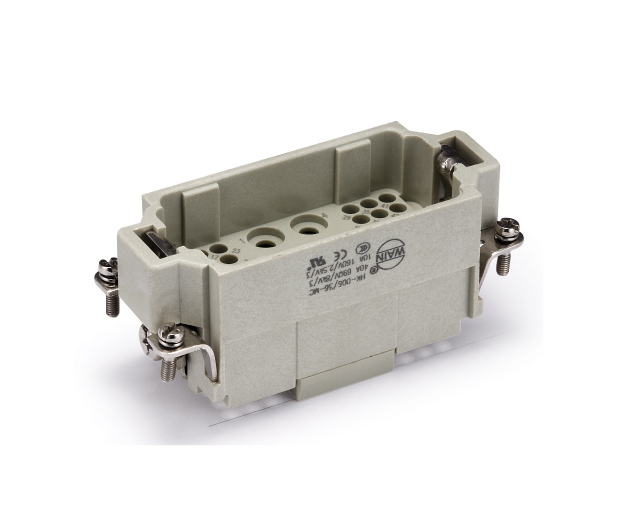

HK-006/36-MC

Insert

128 042 010 0001

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Male,Connection type:Crimp connection,Number of connector contacts:6+36,Rated current:40A|10A,Rated voltage:690V|160V,Wire gauge (mm²):1.5-6mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-14 AWG

Suitable for the shell of the insert housing

+more

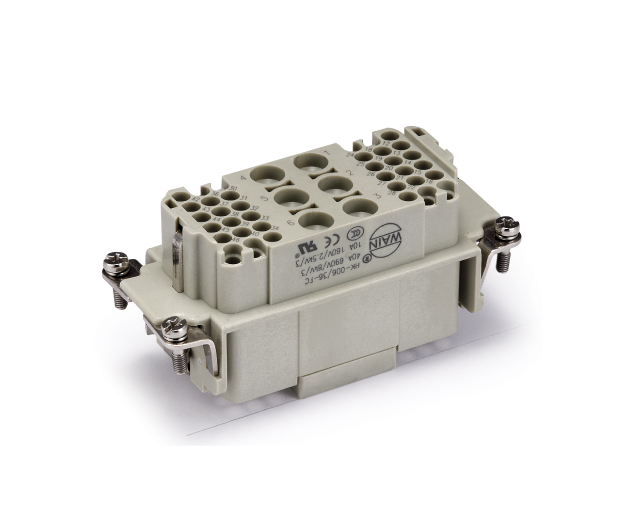

HK-006/36-FC

Insert

128 042 020 0001

Product column： Rectangular Connectors >>Inserts >>HK insert series

Male/female:Female,Connection type:Crimp connection,Rated current:40A|10A,Rated voltage:690V|160V,Wire gauge (mm²):1.5-6mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-14 AWG

Suitable for the shell of the insert housing

+more

Total:40

Total:5 page:4/5
