Combined heavy-current inserts with multiple current options
Each insert transmits both power and signal
160V-830V / 5A-100A
Connection options include screw, axial screw, and crimp
Product column： Rectangular Connectors >>Inserts >>HK insert series
Rated current:10A|4A,Rated voltage:250V|50V,Wire gauge (mm²):0.14-2.5mm²|0.09-0.52mm²,Wire gauge (AWG):26-14 AWG|28-20 AWG,Connection type:Crimp connection,Male/female:Male,Number of connector contacts:32+55
Male/female:Female,Connection type:Crimp connection,Number of connector contacts:32+55,Rated current:10A|4A,Rated voltage:250V|50V,Wire gauge (mm²):0.14-2.5mm²|0.09-0.52mm²,Wire gauge (AWG):26-14 AWG|28-20 AWG

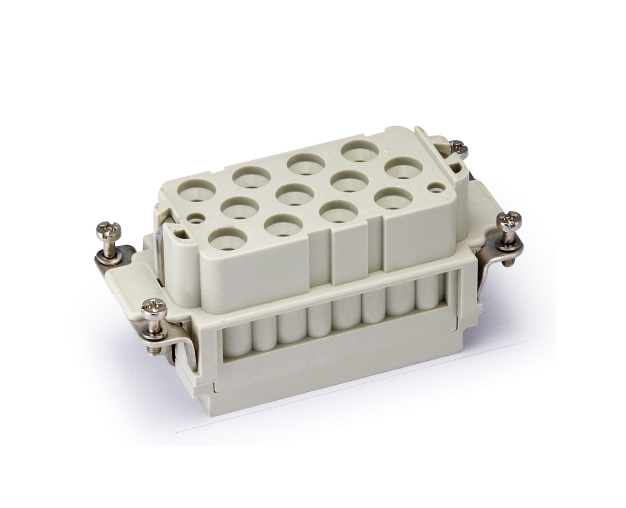

Male/female:Female,Connection type:Crimp connection,Number of connector contacts:12,Rated current:40A,Rated voltage:690V,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):16-10 AWG
Connection type:Crimp connection,Number of connector contacts:12,Rated current:40A,Rated voltage:690V,Wire gauge (mm²):1.5-6mm²,Wire gauge (AWG):16-10 AWG ,Male/female:Male
Male/female:Male,Connection type:Crimp connection,Specifications:10B,Number of connector contacts:4+4,Rated current:70A|16A,Rated voltage:690V|250V,Wire gauge (mm²):10-25mm²|0.14-4mm²,Wire gauge (AWG):8-3 AWG|26-12 AWG

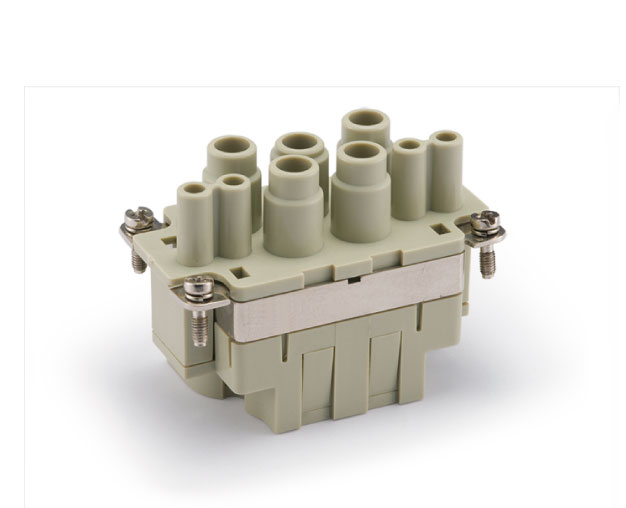

Male/female:Female,Connection type:Crimp connection,Number of connector contacts:4+4,Rated current:70A|16A,Rated voltage:690V|250V,Wire gauge (mm²):10-25mm²|0.14-4mm²,Wire gauge (AWG):8-3 AWG|26-12 AWG

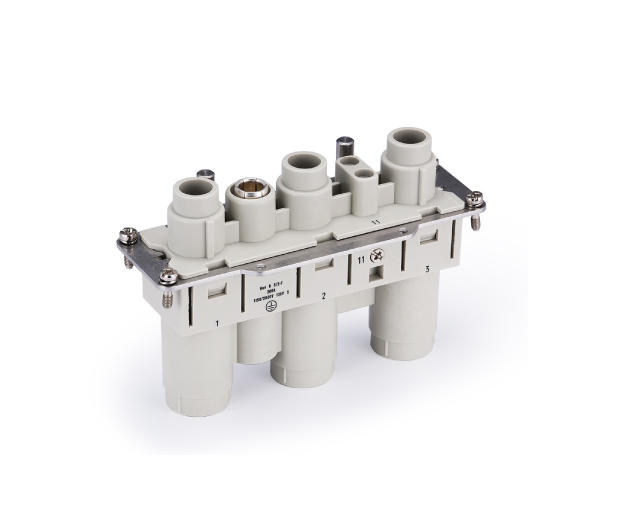

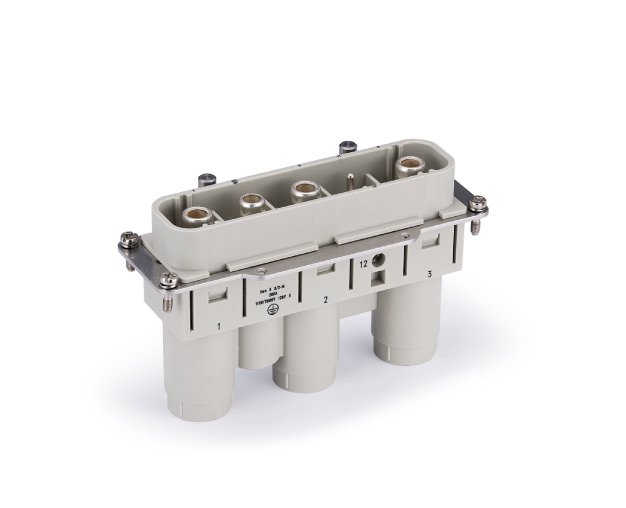

Rated current:200A,Rated voltage:1150|2000V,Wire gauge (mm²):35-70mm²,Wire gauge (AWG):2-00 AWG,Male/female:Male,Connection type:Axial bolt connection,Number of connector contacts:3
Male/female:Female,Connection type:Axial bolt connection,Number of connector contacts:3,Rated current:200A,Rated voltage:1150|2000V,Wire gauge (mm²):35-70mm²,Wire gauge (AWG):2-00 AWG
