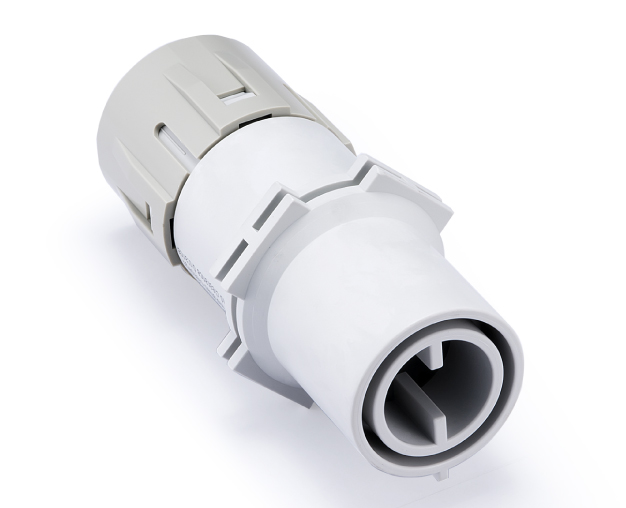

HC650-FC

Model： HC650-FC

Order No： 131 001 020 0201

Do you need to order crimp contacts separately： Yes

Suitable for the shell of the insert housing

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Series

HC insert series
Connection type

Crimp connection
Male/female

Female
Specifications

6B

24B
Number of connector contacts

1
Grounding contacts

No
Rated current

650A
Rated voltage

4KV

2KV
Rated pulse voltage

18KV

12KV
Class of pollution

3
Insulation resistance

≥10¹ºΩ
Working temperature

-40℃...+125℃
Mating cycles

≥500
Inserts material

Polyamide
Inserts color

RAL 9002 (grayish white)
Flame retardant rating as per UL94

V0
Contact material

Copper alloy
Surface treatment

Silver-plated
Contact resistance

≤0.3mΩ
Bayonet range

Maximum cable diameter: 32 mm
Pressure requirements

130kN
Wire gauge (mm²)

95-240mm²
Stripping length

95mm²→42mm

120mm²→42mm

150mm²→42mm

185mm²→46mm

240mm²→46mm
Standard

DIN EN 60664

DIN EN 61984

Authentication

UL
CUL
