AM-1-A-F2S-D-H-4

AM-1-A-F2S-D-H-4

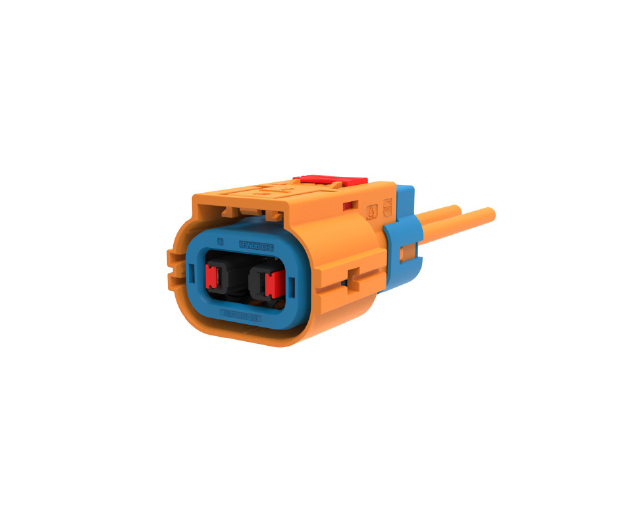

Model： AM-1-A-F2S-D-H-4

Order No： 7000000002292

Do you need to order crimp contacts separately： No

INQUIRY NOW

QUICK SEARCH

Quickly search through "order number", "model", or "keywords"

Download the PDF version of the complete parameter table

Collect this product

Technical Data

Technical Data

cable_specification

QC/T 1037 Shielded Cable
environmental_requirements

RoHS 2.0
salt_spray_resistance

96H
flammability_rating_according_to_ul94

V0
electrical_protection

IP2XB
pollution_degree

Ⅱ
degree_of_protection

IP67

IP6K9K (Mated Head and Socket)
relative_humidity

3%～95%
operating_temperature_range

-40℃...+125℃
mating_cycles

≥50
material

PA66

Silicone Rubber

Copper Alloy
series

AM-1 35A
cable_outer_diameter_mm

5.4±0.3
wire_specification

4mm²
insulation_resistance

≥200MΩ
withstand_voltage

3000V(50Hz AC)Power

1000V(50Hz AC)Signal
rated_voltage

800V DC(Power)

24V DC(Signal)
rated_current

35A
functional_characteristics

With Interlock

Secondary Locking

360° EMC Shielding

Electric Shock Protection
color

Orange
key_position_or_cover

A
connection_method

Crimping
locking_method

Two-Stage Push-In Tool-Free
contact_connection_type

Socket
